Glass Lens Coater
GLC | Precision Evaporation Solution for Glass Optical Lenses

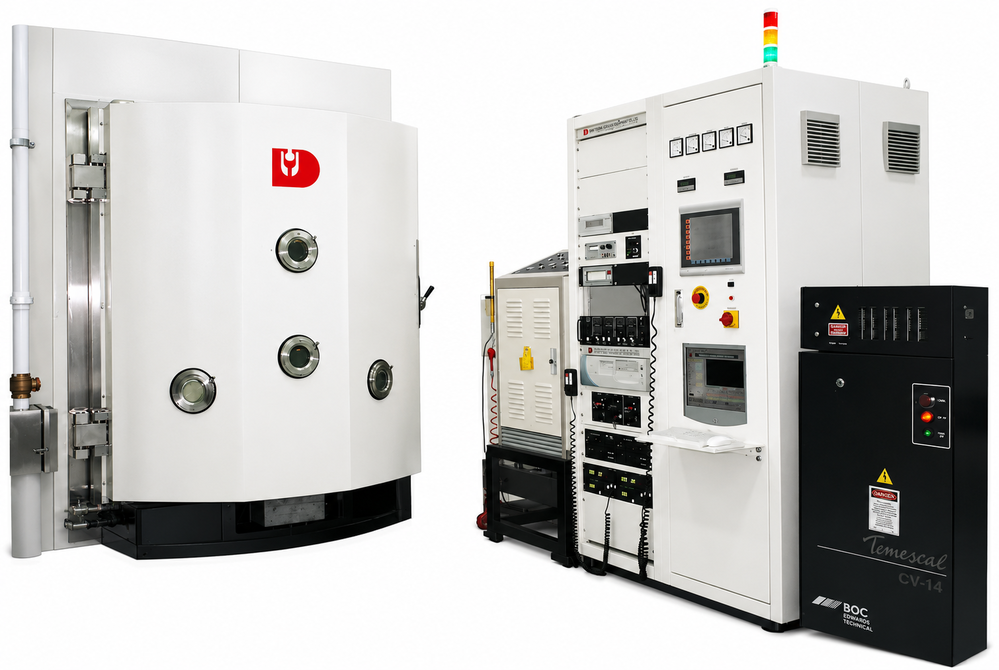

Glass Lens Coater｜Precision Evaporation for Optical LensesA Dedicated Evaporation Platform Built for Precision Optical Lenses
Optical lenses are the core component of every imaging system — from cameras and automotive lenses to surveillance and industrial inspection. Lens imaging quality directly determines the competitiveness of the end product. Yet optical lenses demand far more from thin films than ordinary coatings: uniformity, adhesion, environmental durability, and multilayer stacking precision must all be held to exacting standards.
The Dah Young Vacuum GLC (Glass Lens Coater) is a dedicated equipment platform built upon decades of evaporation expertise and optimized specifically for glass optical lens applications. The GLC integrates Dah Young's in-house high-performance ion source, proprietary Optical Monitoring System (OMS), and planetary rotation fixtures — delivering a stable and reliable production-grade evaporation solution for camera lenses, automotive optics, precision imaging, and other high-end applications.
In-house IAD Ion-Assisted System | Dense, Durable Optical Films
Conventional evaporated films often suffer from spectral drift and adhesion degradation when handling complex multilayer optics — a result of film stress and environmental temperature/humidity variations. Every GLC system comes standard-equipped with Dah Young's in-house 18cm / 24cm / 27cm high-performance ion source, enabling simultaneous Ion-Assisted Deposition (IAD) throughout the evaporation process.
Through energetic ion bombardment, evaporated atoms gain higher mobility on the substrate surface, resulting in denser film structure and significantly enhanced adhesion. Even under low-temperature process conditions, the GLC produces optical films with excellent environmental stability and mechanical strength — passing rigorous automotive-grade reliability tests including high-temperature/humidity, salt spray, and abrasion resistance.
Dah Young Proprietary OMS | Multilayer Thickness Hits Design Spec Precisely
Optical lens applications routinely require broadband anti-reflection (BBAR) coatings, multi-band cut-off filters, and similar high-end film stacks containing dozens or even hundreds of layers. Any thickness error in any single layer is amplified through the stack, directly affecting final spectral performance. The GLC is equipped with Dah Young's proprietary Optical Monitoring System (OMS), which uses real-time spectral detection to precisely control the deposition state of every layer.
The OMS integrates seamlessly with the equipment control system, providing millisecond-level correction capability that effectively addresses thickness drift over long process runs. This precision monitoring lets the GLC deliver multilayer optical spectra that closely match design targets — significantly improving yield and batch-to-batch consistency.
Planetary Rotation Fixture | Tailored to Lens Curvature and Volume Production
Optical lenses are typically spherical or aspherical, and surface coating uniformity is critical to imaging quality. The GLC employs a planetary rotation fixture design paired with Dah Young's proprietary FAST (Film-thickness Accurate Simulation Tool) coating uniformity simulator. Fixture configurations are customized to match lens curvature and dimensions, ensuring thickness uniformity within ±1% across large-area batch coating.
From R&D prototyping to mass production, the GLC offers chamber sizes of 1100, 1350, 1550, and 1800 — helping customers optimize equipment investment and capacity planning at every stage of development.
SpecificationsGLC Series
| Item | GLC-1100 / 1350 / 1550 / 1800 |
|---|---|
| Product Line | Coater Series — Glass Lens Coater |
| Substrate Material | Glass optical substrates (BK7, Fused Silica, Sapphire, various optical glass) |
| Coating Technology | E-beam Evaporation + Ion-Assisted Deposition (IAD) |
| Ion Source | Dah Young in-house 18 / 24 / 27 cm high-performance ion source (configured per chamber size) |
| Optical Monitoring | Dah Young proprietary Optical Monitoring System (OMS) — real-time spectral detection with millisecond-level correction |
| Thickness Uniformity | Within ± 1% (full load) |
| Fixture Design | Planetary rotation fixture, customizable per lens curvature and dimensions |
| Coating Materials | Oxides (SiO₂, Al₂O₃, TiO₂, Ta₂O₅, Nb₂O₅, HfO₂, ZrO₂), Fluorides (MgF₂), Metals (Al, Ag, Cr, Au, Pt) |
| Ultimate Vacuum | ≦ 5 × 10⁻⁶ Torr |
| Operation Mode | IPC fully automatic / manual mode |
| Optional Modules | Multilayer enhancement / customized fixture design |
※ The above represents standard configuration. Actual specifications can be customized to customer application requirements.
01Optimized Design for Glass Optical Substrates
- Material Compatibility: Process parameters optimized for BK7, Fused Silica, sapphire, and various optical glasses — ensuring stable adhesion and film quality.
- High-Temperature Process: Capable of high-temperature heating processes that maximize film crystallinity and density — ideal for high-end optical applications.
- Environmental Durability: Passes high-temperature/humidity, salt spray, and abrasion resistance tests — suitable for outdoor, automotive, and industrial environments.
02Dah Young In-house High-Performance Ion Source (IAD)
- Proprietary Development: Every system is standard-equipped with Dah Young's in-house 18cm / 24cm / 27cm ion source — core technology fully owned in-house.
- Optimized Matching: Ion source precisely configured to chamber geometry, ensuring uniform ion flux coverage across the entire coating zone.
- High-Density Film Quality: Significantly enhances film density, mechanical strength, and environmental durability — achieving excellent film quality even at low process temperatures.
03Dah Young Proprietary Optical Monitoring System (OMS)
- Real-Time Detection: Spectral analysis technology monitors deposition state and optical properties of every layer in real time.
- Millisecond Correction: Seamlessly integrated with the equipment control system, with rapid correction capability that effectively addresses thickness drift.
- High-Yield Assurance: Ensures every layer in a multilayer process precisely meets design thickness — substantially improving spectral matching and production yield.
04Planetary Rotation Fixture & FAST Simulation
- Customized Design: Custom fixture designs tailored to lens curvature and dimensions, accommodating various optical lens geometries.
- Uniformity Simulation: Combined with Dah Young's FAST program, coating uniformity can be simulated before machine startup — substantially reducing correction-mask tuning time.
- Volume Production: Planetary rotation ensures uniform performance under high-load conditions, with thickness uniformity controlled within ±1%.
05Complete Chamber Size Range | From R&D to Volume Production
- Comprehensive Lineup: Multiple chamber sizes — 1100 / 1350 / 1550 / 1800 — covering everything from R&D prototyping to high-volume production.
- Flexible Configuration: Choose the optimal model based on actual application, capacity planning, and facility space.
- High Equipment Utilization: Fully automated control system and Dah Young's customer service team work together to maintain high uptime and stable output in real production.
With its precise optical monitoring, powerful ion-assist capability, and planetary fixture design, the GLC serves a broad range of precision optical lens manufacturing — from consumer electronics to high-end industrial inspection — delivering stable, reliable, production-grade coating solutions.
01 Precision Optics
High-end imaging lenses demand exacting spectral characteristics, aberration control, and anti-reflection performance. The GLC's OMS optical monitoring system ensures the precision required for complex film stacks, meeting manufacturing requirements from consumer-grade to professional-grade lenses.
02 Automotive Optics
Automotive lenses must pass rigorous automotive-grade environmental tests (-40°C ~ +85°C thermal cycling, high-temperature/humidity, salt spray, abrasion resistance, etc.). The GLC's high-density IAD process ensures that films maintain optical performance and adhesion under extreme conditions — making it a trusted choice across the automotive optics supply chain.
03 Surveillance & Industrial Inspection
Surveillance and industrial inspection lenses must maintain optical stability over extended operation, often under day-night temperature swings, dust, and humidity. The GLC's multilayer precision and environmental durability meet the demands of 24/7 high-reliability applications.
04 Laser & Optical Communication
Laser optical components require strict performance at specific wavelengths — high reflectivity, low absorption, and high laser damage thresholds. The GLC combines OMS monitoring with high-density IAD films to produce high-quality laser mirrors and optical communication filters.
05 Bio-medical & Sensing
Bio-medical detection and optical sensing components require optical filters with high signal-to-noise ratio and long-term stability. The GLC's precision thickness control and long-term consistency help customers develop high-sensitivity optical detection systems.
