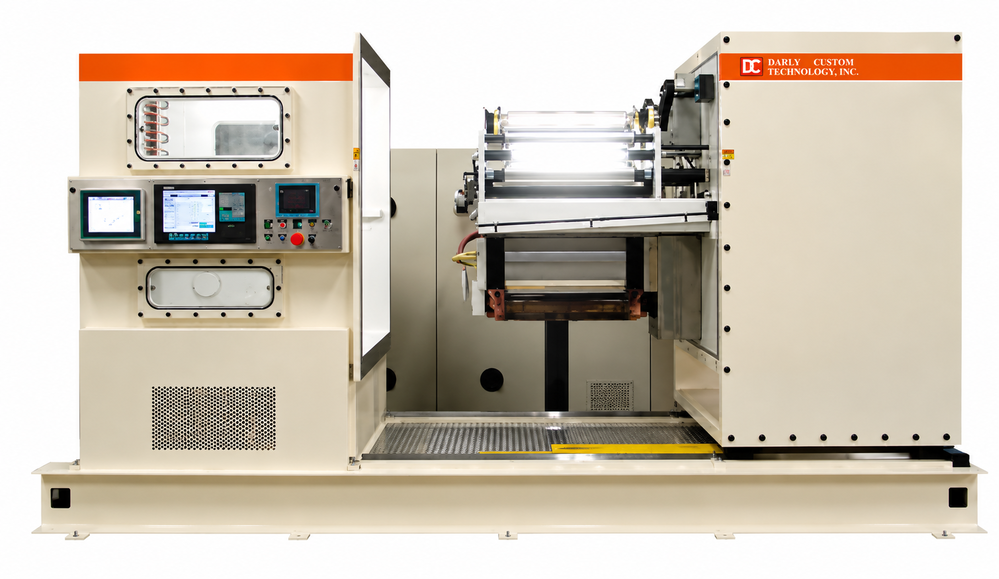

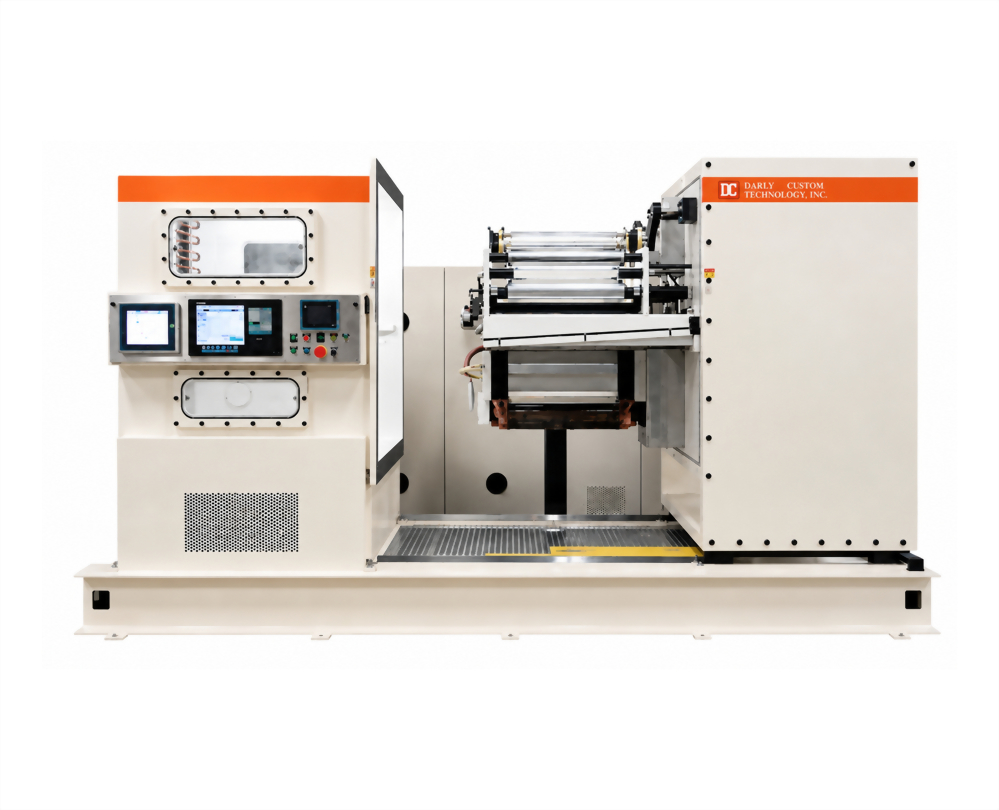

Transparent Conductive R2R Coater
TCRC | A Large-Width R2R Coating Platform Built for Transparent Conductive Film Mass Production
Transparent Conductive R2R Coater｜Large-Format Sputtering for ITO and TCO FilmsA Large-Width R2R Coating Platform Built for Transparent Conductive Film Mass Production
Transparent Conductive Oxide (TCO) thin films — represented by ITO (Indium Tin Oxide) — are core components of the modern optoelectronics industry, broadly applied across touch panels, LCD/OLED displays, solar cells, e-paper, smart glass, and other diverse fields. As end products continue evolving toward larger dimensions, higher yield, and lower cost, the Roll-to-Roll process has become the mainstream choice for mass production of ITO flexible conductive films.
The Dah Young Vacuum TCRC (Transparent Conductive R2R Coater) is a large-width R2R sputtering system optimized for ITO and other transparent conductive oxide mass production. The TCRC employs 900 / 1100 / 1300 / 1700 / 2000 mm multi-width platforms, advanced German plasma monitoring technology, multi-cathode flexible configuration, and high-precision tension control — delivering industry-leading transparent conductive film mass production solutions for touch panel manufacturers, flexible electronics manufacturers, and solar module manufacturers.
Complete Width Spectrum | Matching Large-Format Mass Production Economics
Touch panel and flexible display sizes continue to expand — from 6-inch smartphone screens to 27-inch touch displays, large-format e-whiteboards, and smart glass — driving sustained demand for large-format ITO conductive films. The TCRC offers five web width options (900 / 1100 / 1300 / 1700 / 2000 mm) covering everything from medium production to maximum-format mass production, completing large-format substrate coating in a single process. This substantially improves production economics and per-piece cost competitiveness.
The core technical challenge of large-width coating is full-width uniformity control — conventional large-width R2R processes commonly face edge effects, batch differences, and plasma instability. The TCRC introduces advanced German plasma real-time monitoring technology, capturing plasma state in real time across the 2000 mm full-web range. This stably controls ITO coating uniformity within ±5%, effectively addressing traditional pain points in large-width processes.
Deeply Optimized ITO Process | Low Resistance, High Transmittance, Production-Grade Consistency
Two core optoelectronic properties of ITO films — Sheet Resistance and Visible Light Transmittance — directly determine touch sensitivity and display quality of end products. The TCRC combines MF (Mid-Frequency) power with precise reactive gas control to deposit high-quality ITO films with low sheet resistance and high visible-light transmittance — fully meeting touch panel and display industry mass production standards.
The TCRC's multi-cathode flexible configuration (planar + rotary targets) lets customers select the optimal arrangement per production needs — rotary targets provide longevity and material utilization advantages suitable for continuous mass production; planar targets provide precise thickness control suitable for specialty applications. For the touch and display industries seeking balance across electrical, optical, production efficiency, and equipment depreciation factors, the TCRC delivers the industry's most complete solution.
HiPIMS Option | High Ionization Rate Enhances Film Quality and Bend Resistance
Conventional ITO films are prone to micro-cracking under bending conditions, affecting long-term reliability for emerging applications such as flexible displays and foldable devices. The TCRC offers an optional HiPIMS (High Power Impulse Magnetron Sputtering) high-power impulse power supply — through high-ionization-rate metal plasma, it significantly enhances ITO film density and adhesion, substantially improving film reliability under bending and stretching conditions.
This HiPIMS upgrade option lets the TCRC not only meet conventional rigid ITO applications, but also address the high-end requirements of next-generation applications including flexible displays, foldable devices, and wearable electronics — providing Dah Young customers with a complete ITO process upgrade path.
Specifications
| Item | TCRC-900 / 1100 / 1300 / 1700 / 2000 |
|---|---|
| Product Line | R2R Coating Equipment — Transparent Conductive R2R Coater |
| Web Width | 900 / 1100 / 1300 / 1700 / 2000 mm multi-width platform｜matching mainstream production specifications |
| Substrate Thickness | 6–50 μm｜covering ultra-thin to medium-thickness PET, PI, PEN optical film substrates |
| Coating Technology | Magnetron Sputtering｜PECVD integration optional |
| Power Supply System | MF (Mid-Frequency) primary｜DC and HiPIMS High Power Impulse optional |
| Number of Cathodes | Multi-cathode design｜flexible planar + rotary target configuration, with rotary targets offering longer life |
| Plasma Monitoring | Advanced German plasma real-time monitoring technology｜ensuring large-width process stability |
| Thickness Uniformity | Within ± 5% (across 2000 mm full web) |
| Tension Control | High-precision tension control system｜high-speed web handling for ultra-thin to medium-thickness optical substrates |
| Primary Coating Materials | ITO (Indium Tin Oxide)｜IZO, AZO, FTO and other alternative TCO materials |
| Sheet Resistance | Low sheet resistance achievable (typical ITO specification, optimizable per thickness and post-treatment) |
| Optical Transmittance | High visible-light transmittance (typical ITO specification) |
| Ultimate Vacuum | ≦ 5 × 10⁻⁶ Torr |
| Operation Mode | Auto / manual switching｜designed for 24/7 continuous mass production |
| Optional Modules | PECVD / HiPIMS power / multi-pretreatment / inline resistance measurement |
※ The above represents standard configuration. Actual specifications can be customized to customer mass production requirements.
01Complete Width Spectrum | Multi-Scale Mass Production Coverage
- Large-Width Platform: Five web width options — 900 / 1100 / 1300 / 1700 / 2000 mm — covering mainstream large-format production specifications.
- Production Economics: Large-width coating substantially boosts per-batch throughput, reducing per-piece equipment depreciation cost.
- Flexible Configuration: Customers select optimal width based on product structure and production scale, achieving best investment returns.
02German Plasma Real-Time Monitoring | Large-Width Uniformity Guarantee
- Real-Time Monitoring: Advanced German plasma monitoring technology captures full-web plasma state in real time.
- Full-Web ±5%: Uniformity stably controlled within ±5% across 2000 mm full web — exceeding industry standards.
- Edge Effect Solution: Effectively addresses edge effects and batch differences common in conventional large-width R2R processes.
03Deeply Optimized ITO Process
- Low Sheet Resistance: Low sheet resistance achievable, meeting high-sensitivity touch application requirements.
- High Optical Transmittance: High visible-light transmittance ensures display product visual quality.
- Production-Grade Consistency: Highly consistent batch-to-batch optoelectronic properties — substantially improving downstream yield management.
04Multi-Cathode Flexible Configuration
- Planar + Rotary Targets: Planar targets provide precise thickness control; rotary targets provide longevity and high material utilization.
- Continuous Mass Production Design: Rotary target design suits 24/7 continuous mass production, reducing changeover downtime.
- Alternative Material Support: Beyond ITO, also supports IZO, AZO, FTO, and other alternative TCO materials.
05HiPIMS Option | Flexible ITO Upgrade Path
- HiPIMS Power: Optional high-power impulse power supply enhances ITO film density and adhesion.
- Bend Resistance: Improves flexible ITO reliability under bending and stretching, suitable for foldable devices.
- Next-Generation Applications: Provides customers a complete upgrade path from conventional rigid ITO to next-generation flexible ITO.
Combining the complete width spectrum (900–2000 mm), German plasma monitoring, deeply optimized ITO process, and HiPIMS upgrade capability, the TCRC delivers industry-leading R2R coating solutions for various transparent conductive film mass production applications — broadly deployed across touch, display, solar, flexible electronics, and other diverse optoelectronic industries.
01Touch Panel Mass Production
Touch panels are the largest-scale application of ITO films — from smartphones, tablets, laptop touchpads, to large-format touch displays, with billions of units shipped globally per year. The TCRC's large-width platform and low-resistance ITO process perfectly address the touch panel industry's core requirements for large size, high sensitivity, and production-grade quality.
02Display Panel Industry
LCD, OLED, Mini/Micro LED, e-paper, and other displays all require ITO transparent electrodes as core components of driving circuits. The TCRC's high uniformity and production consistency ensure color performance and long-term stability of large-format display panels — making it a trusted choice for the display industry.
03Solar Cells
Thin-film solar cells (CIGS, CdTe, organic solar, perovskite solar) require transparent conductive oxides as front electrodes — simultaneously achieving the dual functions of light transmission and current collection. The TCRC provides critical process support for next-generation flexible solar cell mass production.
04Flexible & Foldable Electronics
Foldable smartphones, flexible displays, wearable electronics, flexible solar cells, and other next-generation electronics products require flexible ITO films that maintain conductive and optical performance under bending. The TCRC's HiPIMS upgrade option provides flexible electronics with high-bend-resistance ITO solutions.
05Smart Glass & Functional TCO
Emerging applications including architectural smart-dimming glass, automotive smart sunroofs, Low-E energy-saving glass, and electrochromic windows use transparent conductive films as critical components for electrically controlled color change or thermal reflection. The TCRC's large-width capability and diverse material support suit these emerging mass-production needs.
