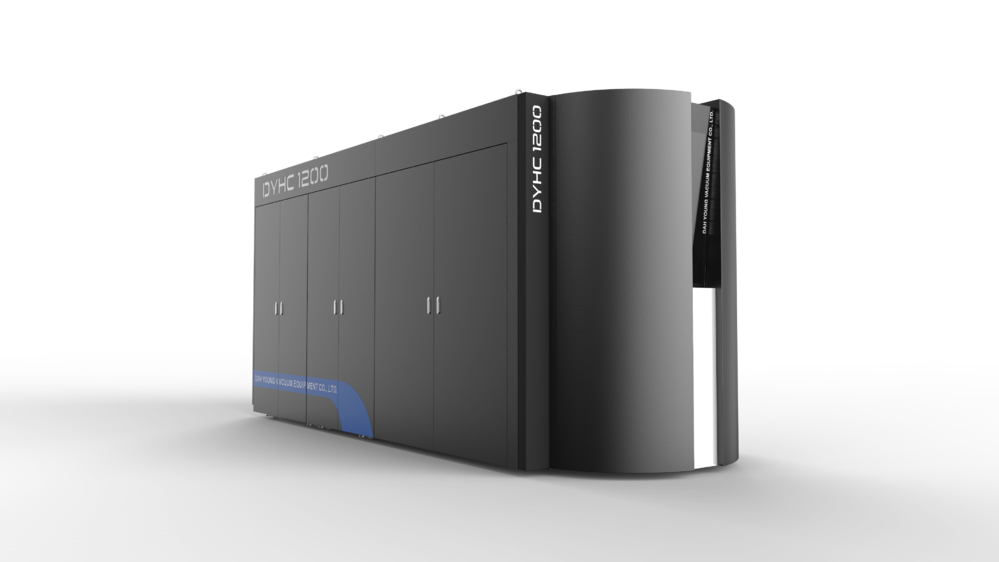

Cathodic Arc DLC Coating Machine

Model : DYHC DLC

DLC coating has the characteristics of high hardness, low friction coefficient, high density, wear resistance and corrosion resistance. The coating can be deposited at low temperature, so it is widely used in cutting tool, drill, automobile friction parts , decorative coating (such as watch and smart phone case), mechanical parts, various molds and other products.

Dah Young's hard coating equipment has a unique chamber design and power configuration. According to customer needs, we can provide target position design.It can also be equipped with a magnetic filter tube. The serial connection of the magnetic filter tubes in front of each arc target can be adjusted according to process needs, so as to increase the target ionization rate, reduce target particle adhesion, reduce production costs, and improve coating quality.





DYHC DLC 1000
Coating Substrate
Metal
Coating Technology Cathodic arc evaporation
Coating Applications
    •  Metal films (Ti, Cr, Ag, Cu, Al, etc.)
    •  Nitride film (TiN, CrN, TiAlN, AlCrN)
    •  Carbide film (DLC, TiC, TiCN)
    •  Oxide film (TiO, ZnO, etc.)
Coating Color  Per customer requirements
Chamber Material SUS304
Operating system
IPC&PLC automatic and manual control
Weight ~5000 kg
Vendor brand HUETTINGER, Pfeiffer, Leybold or customer preferred
Chamber diameter
Ø1000 mm
Chamber height
H1000 mm
Number of Planetary Axis
7 axes (other designs available)
Effective coating diameter
Ø228 mm
Effective coating height H750 mm
Number of Arc sources 10 groups
Arc power supply
10 kW
Ultimate vacuum (Torr)
 5*10-6 Torr
Power requirement
3 phase, 380 V ±5%, 150 A, 60 Hz, independent grounding

  1. Fully automated control (IPC & PLC), composite multilayer film coating system.
  2. It can conduct research on metal thin films, metallic glass thin films, nitride thin films, oxide thin films, carbide thin films, carbonitride thin films and oxynitride thin films.
  3. Collect process data, production alarm data, facilitate data collection and equipment maintenance.
  4. No other harmful substances are generated during the coating process, which can save the environmental safety treatment costs caused by the wet process.
  5. The surface of the film has high compactness, and its functionality and color are better than traditional wet process electroplating.
  6. The low-mounted cavity is matched with the planetary revolution and rotation mechanism, which is suitable for mass production of various sizes of workpieces.
  7. Comply with EU CE safety standards and technical specifications (optional).
  8. The setting trolley is convenient for Loading/Unloading production and improves production efficiency.
  9. Bilingual interface, image mode, easy to operate.
  10. Independent safety loop power supply and emergency stop switch settings enhance the safety of personnel operation.


Applications: ball bearing,turbo parts, Al extrusion die, powder metallurgy molds, medical equipment, mechanical components, cutting tools, molds, automotive and motorcycle parts, liquid crystal alignment films, resistive memory, etc.
